Product Introduction:

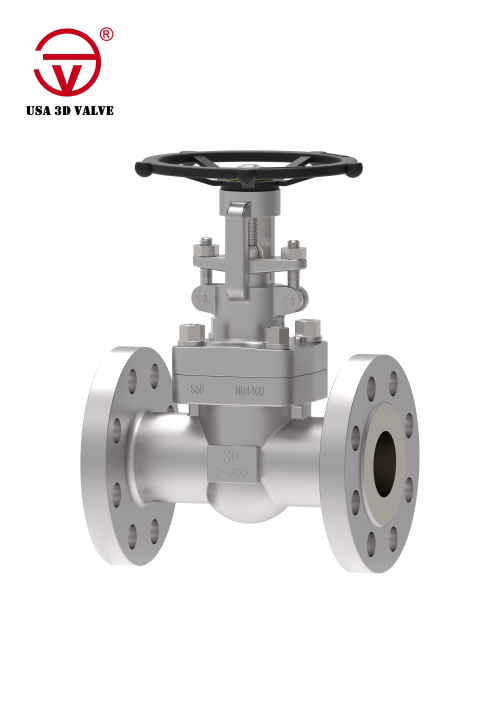

Monel forged steel gate valve is a high-quality valve commonly used in industrial applications such as petrochemicals and refining. This gate valve is made of sturdy materials and forged to ensure exceptional strength and durability, allowing it to withstand harsh environments and heavy loads.
The Monel forged steel gate valve has high reliability due to its excellent sealing performance and low operating torque. Its design provides smooth operation, fast opening and closing, making it suitable for controlling the flow of various fluids and gases.
This valve adopts a sturdy and durable corrosion-resistant valve body, ensuring maximum efficiency and extending service life. The valve stem and cover components are made of high-quality materials, such as stainless steel, which can withstand extreme temperatures and pressures. At the same time, its design is easy to install and maintain, the structure is simplified, and it is easy to disassemble.
Specification:
Size: 1/2"～4"
Rating: Class 150～2500
Connection: RF, RTJ, BW, SW, NPT
Operation: Handwheel, Gear, Pneumatic, Electrical
Tempertature: -196～650℃
Design Standard:
Design and Manufacture:API 602, BS 5352, ASME B16.34
Socket Welded ends:ANSI B16.11, JB/T1751
Screw Ends:ANSI B1.20.1, JB/T7306
Butt-Welded Ends:ANSI B16.25, JB/T12224
Flange Ends:ANSI B16.5, JB79
Test and Inspection:API 598, GB/T13927,JB/T9092
Material List:
Body/Bonnet:A105N,N06625,N04400
Seat:A105N,N06625,N04400
Wedge:A105N,N06625,N04400
Stem:F304,F316,N06625,N04400
Packing:Graphite,PTFE
Gasket:SS+Graphite,PTFE;
Bolt/Nut:B7/2H,B7M/2HM,B8M/8B,L7/4,L7M/4M
