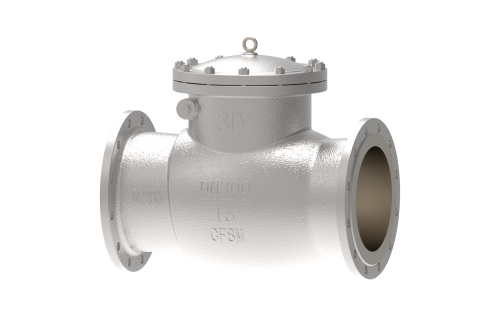

![DIN Standard Stainless Steel Swing Check Valves](https://www.usa3dvalve.com//uploads/images/products/8/8/0046639001719239614-din-standard-stainle_500.png)
Introduction:
DIN standard stainless steel swing check valves are essential components in piping systems, designed to prevent backflow of fluids and ensure the safety and efficiency of various industrial processes. These valves adhere to DIN GOST standards and are constructed from high-quality stainless steel, offering excellent corrosion resistance and durability.
Features:
1. Stainless Steel Construction: DIN standard stainless steel swing check valves are manufactured using high-grade stainless steel materials, providing superior corrosion resistance, durability, and longevity.
2. Swing Disc Design: These valves feature a swing disc that pivots on a hinge or trunnion, allowing the disc to freely swing open and closed in response to fluid flow.
3. Renewable Seat Rings: Some valves are equipped with renewable seat rings made from materials such as stainless steel or stellite, ensuring tight sealing and extended service life.
4. Bolted Bonnet: The bolted bonnet design allows for easy access to internal components for maintenance and repair.
5. Flanged Ends: DIN standard stainless steel swing check valves come with flanged ends for easy installation and connection to piping systems using bolted flange connections.
6. Pressure Rating: These valves are available in various pressure ratings to suit different application requirements.
7. Corrosion Resistance: Stainless steel construction offers excellent resistance to corrosion, making these valves suitable for use in corrosive environments.
8. Non-Slam Operation: The swing disc design minimizes the risk of water hammer and ensures smooth operation without slamming during opening and closing.
Working Environment:
DIN standard stainless steel swing check valves are suitable for a wide range of working environments, including:
1. Chemical Processing: These valves are used in chemical processing plants for regulating the flow of corrosive chemicals, acids, and aggressive fluids used in manufacturing processes.
2. Petrochemical Industry: Stainless steel swing check valves find applications in the petrochemical industry for preventing backflow in refineries, chemical plants, and petrochemical processing facilities.
3. Water and Wastewater Treatment: Swing check valves are utilized in water treatment plants, wastewater treatment facilities, and desalination plants for preventing backflow in water distribution networks and pumping systems.
4. HVAC Systems: These valves are employed in heating, ventilation, and air conditioning (HVAC) systems for preventing backflow of chilled water, hot water, and refrigerants.
Working Principle:
1. Normal Operation: During normal operation, fluid flow pushes the swing disc open, allowing fluid to pass through the valve in the forward direction.
2. Reverse Flow Prevention: When fluid flow reverses, the swing disc swings back to its closed position, driven by gravity and the pressure differential across the valve. This prevents reverse flow and ensures fluid flows in the desired direction.
3. Non-Slam Operation: The swing disc design allows for smooth opening and closing of the valve, minimizing water hammer effects and ensuring quiet operation without slamming.
