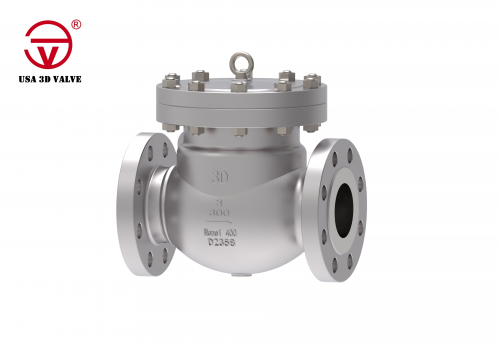

Monel 400 Swing Check Valve

Description:

Product Introduction:

The Monel 400 swing check valve is a highly reliable and efficient valve designed to prevent fluid backflow in the system. This type of valve is manufactured using Monel 400 material, which is known for its excellent corrosion and erosion resistance in harsh environments. The Monel 400 swing check valve is widely used in various applications in the chemical, petrochemical, oil and gas, and marine industries.

The Monel 400 swing check valve is very durable, with good tensile strength and weldability, and can withstand high pressure conditions without causing any damage or leakage. It adopts a simple and effective design, which helps to reduce the risk of failure. The excellent sealing performance of this valve ensures that fluid can only flow in one direction, ensuring maximum efficiency and control over system operation.

In addition, the Monel 400 swing check valve comes in different sizes and configurations, suitable for various pipeline systems. It can be installed vertically, horizontally, or obliquely without affecting its performance and reliability.

Merit:

1. Corrosion Resistance: Monel 400 swing Check valves are made of a nickel-copper alloy that offers excellent resistance to corrosion, particularly in environments with high levels of saltwater or acidic solutions.

2. Durability: Monel400 is a sturdy and durable material that makes these check valves very durable. They can withstand high pressure and high temperature conditions without cracking or breaking.

3. High-Temperature Resistance: Monel400 check valves have a high melting point, making them suitable for high-temperature applications. They are capable of withstanding temperatures ranging from -450°F to 1900°F.

4. Low maintenance: The material used to manufacture Monel 400 swing check valves has a natural low coefficient of friction, which can reduce wear on valve components and require less maintenance in the long run.

Specification:

Valve Size:1/2"～60"(DN15~DN1500)

Connection:Threaded, Tube End, Socket Weld End, Flange End

Flow Pattern:Straight

Pressure Rating:Class150～2500(PN10~PN420)

Application:Hydraulic Oil, Air, Water, Gas, Steam, Hot Water, Cold Water, Sea Water, Chemical

Media Temperature:(-50* C To 350*C ) Range As Per Pressure

Material:MONEL 400

Design Standard:

Design: API6D, ASME B16.34, GB/T 12236.

Face to Face: ASME B16.10

Flange End: ASME B16.5, ASME B16.47

Butt-Welding End: ASME B16.25

Test: API 598/ API 6D

Special: NACE MR-01-75
